In this scheme, you'd ask the hard disk[1] not for the bits/byte/word at a given position, but actually for a key associated with a record. The hardware would then give you the variable length record associated with that key back.
Now you may argue, "yes, but the data on that disk/DASD was, on a low level, still an array of bits". And... well, sort of. I don't know the full details[2], but it looks like the records were separated similarly to how nowadays sectors are separated on modern (spinny) hard disks: By "gaps". Those are technically also bits, but they are recognized by lower level hardware and abstracted away from what reaches the "computer".
Nowadays, CKD is still supported, but merely emulated on pretty boring commodity disks (sorry, "DASDs") that are addressed using sectors and tracks (or actually just sector number, since we started abstracting actual disk geometry away a few decades ago), arranged in a rigid sequential order.
[1] Aside, IBM calls a hard disk "DASD": direct-access storage device.
[2] The full details are here: https://web.archive.org/web/20200330172847/http://bitsavers....
It's a "leaky abstraction" to think of a disk as a flat array of bits.
For one, very few block devices are byte addressable! The hint is in the name.
For example, if you change byte number 124567, then you're most likely actually reading a block of 512 bytes from offset 124416 to 124928, modifying it, and then writing it back.
This matters a lot for concurrent access, locking, and database transaction log integrity.
Many disks these days are layers upon layers of abstractions: they might be physically striped, deduplicated, compressed, shared, encrypted, or remote on a network somewhere.
Performance is complicated as well. For example, SSDs have different performance-optimal block sizes for reads and writes. The shingled magnetic recording (SMR) hard drives are even more complex.
Not to mention that disks can have block-level failures. It's possible for a disk to have a "hole" where it's a series of bytes... an error... and then a series of bytes. There are three values: "0", "1", and "bad sector"!
Issues like this have caused a lot of software errors.

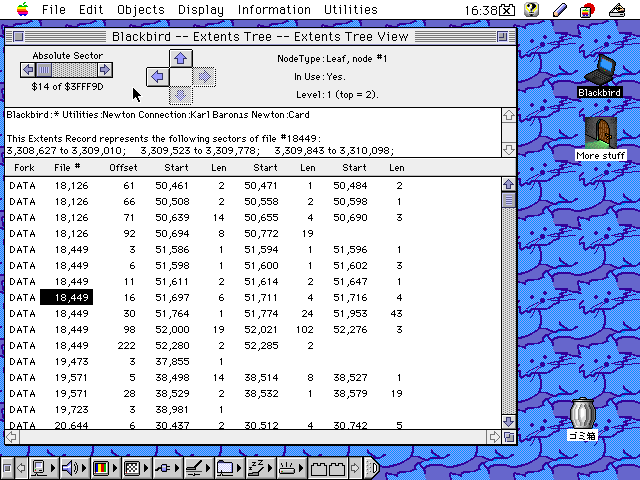

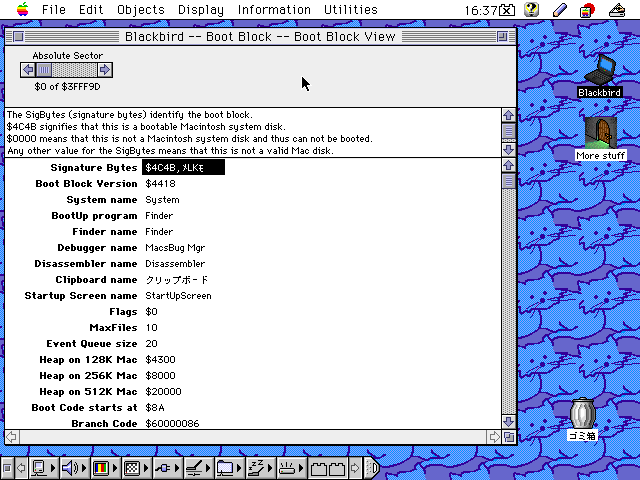

edit: since I couldn't find any online, I booted up the ol' PowerBook 540c and took some screenshots!
https://kalleboo.com/retrotech/software/norton_utilities/nor...
https://kalleboo.com/retrotech/software/norton_utilities/nor...
https://kalleboo.com/retrotech/software/norton_utilities/nor...
It also introduced me to trivia like how the names of developers were encoded into the file system, which felt like being let in on some secret https://kalleboo.com/retrotech/software/norton_utilities/nor...
I increasingly meet devs who have no such knowledge (beyond a vague understanding). They sometimes don't even understand bitwise operations or when to use them and why.
It completely boggles my mind.
But there's still a lot of call for programmers who understand the hardware and/or low-level protocols. We write the stuff the other people use to get their work done.
I don't think such devs are lesser in some way. They're just working at a high enough level of abstraction that such things aren't that relevant to what they're doing. The old fart in me does struggle to understand how people can learn to be devs without learning bit-level stuff, but that's just me noticing the strange new ways of a strange new world.
And for devs like myself, who are happiest when working close to the metal, it's a professional advantage. As the pool of devs who know how to (and enjoy) twiddle bits shrinks, those of us who are left have more work and can command higher pay rates.
The software industry is maturing and, like other industries that have matured, the people in it are increasingly specialists. My bit-twiddling ways are just a different specialty.
How can I learn?
(The NAND Game is having you build the same stuff as NAND to Tetris, but you do it visually as circuit block diagrams, rather than writing a textual description of how the circuits would connect up. It also doesn't include the elaborate details of why you're building each thing, although since it's the same content and sequence as NAND to Tetris, you could read the book or listen to lectures while doing the NAND game to get more context.)
Alternatively, read Code: The Hidden Language of Computer Hardware and Software by Charles Petzold. A very bit-oriented book!
These suggestions might be controversial because they start bottom-up rather than top-down -- they're not really asking "how does the stuff that you already use work at a lower level?" but more like "suppose that we had logic circuits and math; what could we do with those that would eventually allow us to have computer systems?". Some people might advocate trying to find a way to experiment with things that are more closely connected to what you already do with computer programming.
Alternatively, you could do some kind of cryptography class or tutorial, as those extensively use bitwise operations (although the only one that is likely to be explained is XOR, because XOR mixes two bit sequences in a reversible way, which makes it natural for use in encryption and decryption).
I tend to think of there being two classes of problems that are addressed at the bitwise level. The first is optimization and the second is hardware control. The techniques the two use are rather different.
Optimization is a tricky topic, because you can't always get great gains there though bitwise operations, but when you can, the gains can be huge. This is because (for compiled languages) modern compilers tend to be very good at this sort of optimization and will do things in very efficient way to begin with. You taking the bits into your own hands aren't likely to improve on them. Also, there are processors where certain optimizations don't apply. For example, shifting a value one bit to the left is the same as multiplying by 2, and to the right is the same as dividing by 2. In many processors, the bit shift is much faster than the multiplication operation, so there's a win to be had there. In others, however, there is not such a huge speed difference. It all depends.
In terms of hardware control, what you want to know is more obvious: what is the most efficient way to work with single or small groups of bits? What's the fastest way to count bits? That sort of thing.
As an aside -- where I currently work, one of the interview problems is to have the applicant write code that counts how many bits are set in a word. Even high-level programmers will generally know how to do this -- but the method they use tells you a lot about the focus of their training and skillset. Bonus points if you can say why this is a useful thing to do, and what the Big O for your method is.
In any case, I would suggest reading up on Boolean algebra to start to get a handle on this stuff.
If you want to really wow people (at least ones who aren't graybeards), then a fun trick is to learn to model things (system states, whatever) as boolean networks (linking together AND, OR, XOR, etc. "gates" that result in a desired truth table), then use Karnaugh maps to reduce the network to the smallest possible number of components. I learned this as a way of reducing component counts in digital logic circuits, but I still find use for them to this day in purely software applications and often get called a wizard for being able to produce complex decision-making code that is very fast.
The price you pay, of course, is that such code is not easy to follow for the poor souls who have to work with it later.
The language to be used for the exercise is intentionally not specified (even pseudocode is fine), so more often with younger applicants you see them using Python and doing it using high-level methods. Not the best approach for that kind of problem, but it also tells us something -- that applicant is probably better suited for our AI teams than our embedded systems teams.
"A disk is a bunch of bits" doesn't seem to me like an accurate characterization of microcomputers at any time, really, in the last 50 years. I started to say that I think things got really complicated with SSDs, but spinning hard and floppy disks were never that simple either.
I don't mean to nitpick, and I'm no expert, but I think the non-bit-array nature of storage had a lot of implications for users doing low level stuff - for example, copy protection sometimes exploited the hardware to try to make an uncopyable disc. Or if you were setting up partitions on a hard drive, you'd need to know about more than just "disk = bits".
https://en.wikipedia.org/wiki/Cylinder-head-sector https://en.wikipedia.org/wiki/Logical_block_addressing https://en.wikipedia.org/wiki/Modified_frequency_modulation
"Commodore's Amiga used an unusual format which got closer to the disk's raw (unformatted) capacity by eliminating the gaps between sectors and simplifying the identification data. This meant that individual sectors could not be rewritten; the Amiga would simply rewrite the entire track."
https://en.wikipedia.org/wiki/Floppy_disk_format
I also remember that audio CDs, even though you could read them on a computer, were very, very much not bit arrays. Despite their vaunted "digital" nature, you couldn't rely on getting the same bitstream every time if you were ripping them to disk. https://en.wikipedia.org/wiki/Cdparanoia
(I wonder if the time delay due to remapping could be used as a covert channel? Probably not).
Ach darn. They invoked it. I guess now we need a name, a logo and a migration plan back to spinning rust over the next two weeks for security reasons.
There were various schemes of this and it finally ended up with abandoning physical(CHS) addresses entirely and just let the drive figure it out by moving to a flat address model(Logical Block Addressing), note that LBA mode was around long before SSD's
[Edited to add: Good enough for me throw it into the ole NetNewsWire hopper.]
You have to draw the line somewhere, usually at the interface between "computer" and "disk controller" (or at what view the kernel presents to you), otherwise you may as well go down until you reach the quantum physics of it.
In a sibling comment, I elaborated on IBM's "CKD" scheme, which was interesting in that regard because it did not present a sequential array of bits/bytes/words to the computer, so the usual "bunch of bits" point of view broke down in this particular case.
