> In 1975, Intel's next big plan was the 8800 processor designed to be Intel's chief architecture for the 1980s. This processor was called a "micromainframe" because of its planned high performance. It had an entirely new instruction set designed for high-level languages such as Ada, and supported object-oriented programming and garbage collection at the hardware level.
https://www.cl.cam.ac.uk/research/security/ctsrd/cheri/ is more what I was thinking
https://en.wikipedia.org/wiki/Intel_iAPX_432#Object-oriented...
[1] https://community.arm.com/developer/ip-products/processors/b...
But the most likely possibility is that the plan was too grand for the time (note, this was 197x to ~ 1984ish, the IBM PC with its 8088 had only been on the market about three or so years) and therefore much too expensive for any market to bear.
Additionally, the iAPX432 was being worked upon during the same time that the IBM PC suddenly brought the x86 chips to significant popularity.
Combine the concepts of pouring money into an arch. that was too big and grandiose for the integration tech. at the time, with a sudden influx of profit from the x86 chip line, and it seems that a likely reason was simply to devote resources to the chip line that was suddenly producing those same resources.
The Wikipedia page (https://en.wikipedia.org/wiki/IAPX432) also says this about the '432:
"Using the semiconductor technology of its day, Intel's engineers weren't able to translate the design into a very efficient first implementation. Along with the lack of optimization in a premature Ada compiler, this contributed to rather slow but expensive computer systems, performing typical benchmarks at roughly 1/4 the speed of the new 80286 chip at the same clock frequency (in early 1982).[7] This initial performance gap to the rather low-profile and low-priced 8086 line was probably the main reason why Intel's plan to replace the latter (later known as x86) with the iAPX 432 failed. Although engineers saw ways to improve a next generation design, the iAPX 432 capability architecture had now started to be regarded more as an implementation overhead rather than as the simplifying support it was intended to be."
The main reason that AMD (and others) manufactured x86 CPUs early on was because IBM had a 'second source' requirement; i.e. there had to be another vendor who could provide the same part.
So an AMD 286 was no different from an Intel 286.
By the time of the 386, IBM had relaxed/dropped the second-source requirement. Thus the Am386 isn't the same design as the i386 (and there was a court battle to try to keep the AMD part out of the market.)
tl;dr - Intel never wanted to license at all.
Court battle was over 287 and later Am486. AMD announced clean-room design ... and gave their clean room engineers 386 microcode copy :]
RISC, which in some senses is the polar opposite of the approach taken with the 432, also started to generate a lot of interest at about the same time.
There is an excellent paper by Robert Colwell exploring why the 432 was slow and how it could have been speeded up:
https://dl.acm.org/doi/10.1145/45059.214411
Colwell was subsequently recruited by Intel and went on to play a major role in the design of the Pentium Pro.
My guess it is it was something like the "AI Winter:" a hyped idea fails in in a high-profile way, so it gets shunned for some period of time because people are afraid of failing again in a similar way. It seems like some of the features of that processor lead it to be a nonstarter for practical reasons:
> According to the New York Times, "the i432 ran 5 to 10 times more slowly than its competitor, the Motorola 68000".
Back then, personal computers didn't have much performance to spare.
IIRC, Intel has had several high-profile failures when radically new non-x86 CPU architectures. Only backwards-compatible conservative evolutions of the x86 seem to get traction.
I remember thinking that the 8088 (in the IBM PC) was a speed demon compared to the 8080 (in the CP/M system I was converting from).
A few months ago I returned to the project and completed it this time; https://github.com/billforsternz/retro-sargon
As I should have realised the first time, you can write your own converter in an afternoon or two :-)
After the IBM PC came out, everyone tossed their MDS-80 systems when Intel started to provide their tools on MS-DOS.
With the current interest in retro computing, I wish I had saved more stuff from back then. I kick myself for not saving an Intel i960CA evaluation board that I used in 1992. I loved the i960 architecture and developed quite a few products with it.

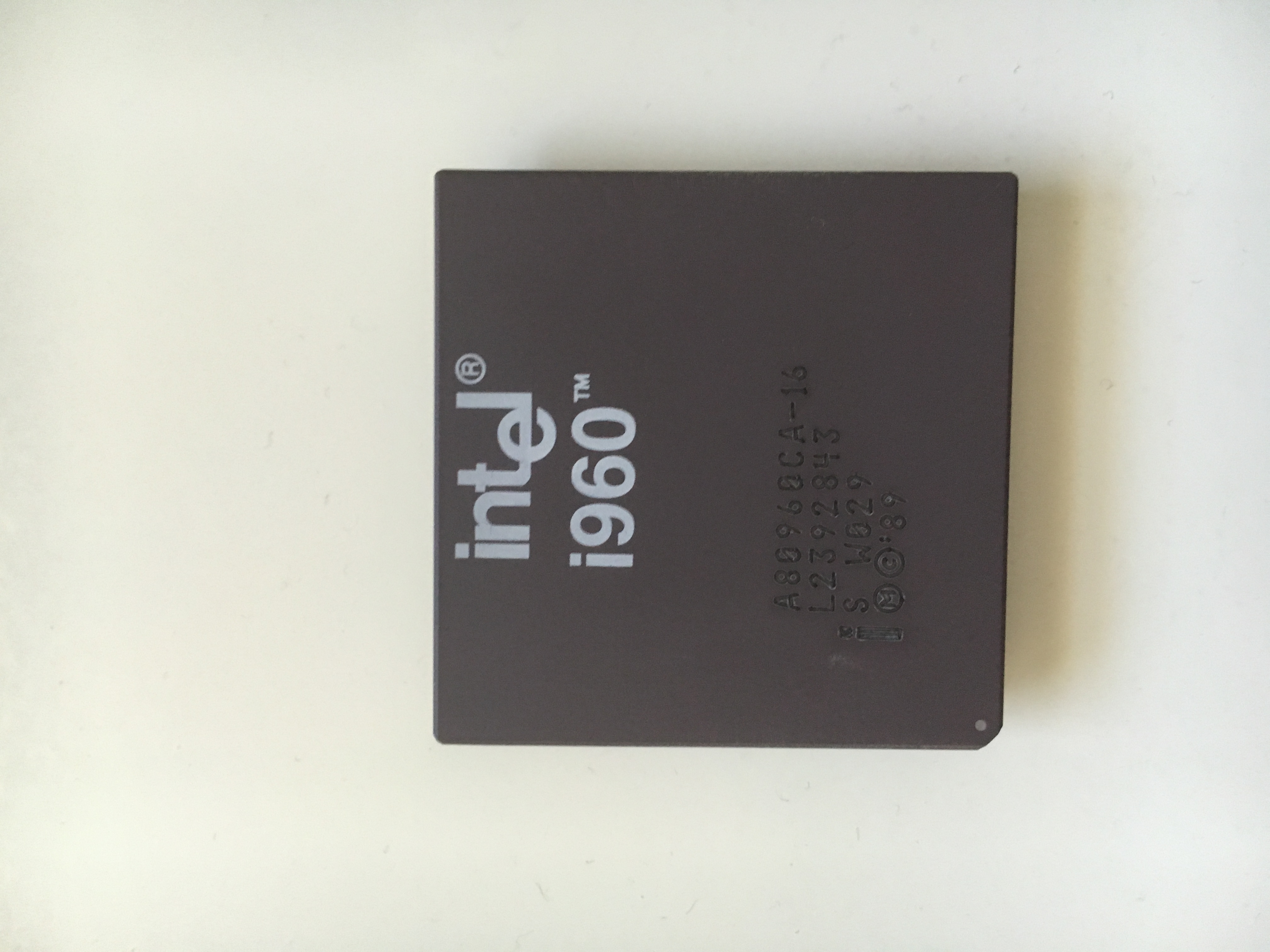

However, I still have the processor from that board because I replaced it with an i960CF.
I'm toying with the idea of writing something in C64 assembly (something I never did learn back when I was a kid and owned one). I'm delighted to see there's an active scene of C64 fans coding new games for it even today.
Real life will interfere, of course, but a man can dream...
I remember writing 68k assembly code and it was very pleasant to work with. 8 address registers, 8 data registers, if you want to access memory, you just put a 32-bit address into an address register.
Then I read a book about 80286 assembly and though "ugh this is horrible" and never wrote a single line of x86 assembly code. Worrying about segments and memory models (tiny, small, medium, compact, large, huge) seemed like such a drag on programmer productivity.
It was at a magic price point though, ten dollars literally could have broken the whole product.
-quote-
Technology exchange agreement with Intel
Intel had introduced the first x86 microprocessors in 1978. In 1981, IBM created its PC, and wanted Intel's x86 processors, but only under the condition that Intel also provide a second-source manufacturer for its patented x86 microprocessors. Intel and AMD entered into a 10-year technology exchange agreement, first signed in October 1981 and formally executed in February 1982. The terms of the agreement were that each company could acquire the right to become a second-source manufacturer of semiconductor products developed by the other; that is, each party could "earn" the right to manufacture and sell a product developed by the other, if agreed to, by exchanging the manufacturing rights to a product of equivalent technical complexity. The technical information and licenses needed to make and sell a part would be exchanged for a royalty to the developing company. The 1982 agreement also extended the 1976 AMD–Intel cross-licensing agreement through 1995. The agreement included the right to invoke arbitration of disagreements, and after five years the right of either party to end the agreement with one year's notice. The main result of the 1982 agreement was that AMD became a second-source manufacturer of Intel's x86 microprocessors and related chips, and Intel provided AMD with database tapes for its 8086, 80186, and 80286 chips.
-end quote-
How much really was Intel sowing FUD vs. IBM demanding a second source be available is probably lost to time.
Friend worked on a layout where they did the board design first and then designed the processor pinout to match. So they could get away with a small two layer board. Ground on the bottom layer and all the signals on the top layer.
Intel Motorola
1974 8080 8-bit
1974 6800 8-bit
1976 8085 8-bit
1978 6809 8-bit
1978 8086 16-bit
1979 68000 32-bit
1982 80286 16-bit
1985 80386 32-bitIt would have given the x86 a native 24MB address space, equal to the 68000's physically provisioned 24 bits (which is all most 68K systems supported anyway, certainly the Atari ST and the Mac).
For instance, in the mid 80s, VisiCorp was trying really, really hard to fit their products into 640K. They had some whizzy stuff, but the address space problem pretty much killed them. Later, Microsoft and IBM came along, did the disgusting memory-space hacks that plagued users for a decade or more, and VisiCorp foundered.
It would also have increased memory fragmentation. Many memory allocations were aligned to a segment boundary, so you'd be wasting up to 255 bytes instead of up to 15 bytes on each allocation.
Large model memory allocators would allocate memory on segment boundaries. This is more or less essential if you need to use more than 64K of memory in your program.
An 8-bit paragraph size (rather than the 4 that were used) would've forced all segment allocations to 256-byte boundaries, so that's where the fragmentation issue comes from.
Steve Morse (one of the designers of the chip) talks about the issue in page 16 of this: https://www.stevemorse.org/8086history/8086history.pdf
That would be 16MB (plus possibly 65,536-256 bytes, depending on whether they added a bug on address wraparound (https://en.wikipedia.org/wiki/A20_line)).
Also, the 68000 would still have the clearer upgrade path, as the 24 address lines restriction was in the design of the chip, not in its architecture. As long as code didn’t assume addresses were modulo 2²⁴, code would run unmodified on a CPU with over 16MB memory, and use all of it.
Also, the idea with the 8086 was that programs would actually use 16-bit pointers for objects, not 20-bit ones. That would be wasteful of memory if the granularity of such addresses were 256 bytes.
Argument still stands.
I've made that argument in the past too, but I tend to think the 8-bit paragraph shift would've been a nice third mode on the 286 (or maybe a second mode on the 186). So a 286 would've had:
* Real mode with 4 bit shift
* Real mode with 8 bit shift
* Protected mode with indirection through descriptor tables
It seems plausible to me that it would've been possible to make software that would have binary compatible with either of the two real modes, which was not possible between real and protected. That would've opened up 286 users to easier access to memory beyond 1MB.
But I don't know that this would've been a huge change for the industry, aside from killing off the need for LIM/EMS bank switching between 1985 and its death at the hands of Windows 3.0 in 1990. (And towards the later end of that period, the 386 could be made to provide EMS memory without additional hardware.)
I think the best argument for it being a major change is that it might have undermined the need for OS/2.... but even then, OS/2 was the way it was, not due to memory constraints, but due to IBM's need to attempt to regain control of a market it'd lost control over. So 8-bit paragraphs would've been nice for big spreadsheet/dBase users in the 1986-88 period, but not much nore than that.
(And all of this is just five or six years, really.... no time at all.)
I think the existing base of 8080 software (including CP/M software) was on their minds. You see the same thing in the 386/486, they have the large flat virtual address space software devs wanted, but until the early 90s their commercial value was running 8088 software really fast.
This is the generally accepted history. According to what's in Wikipedia (https://en.wikipedia.org/wiki/Intel_8086#The_first_x86_desig...) the design was developed very quickly, and intentionally built as a straightforward 'extension' of the 8080/8085 chips into the 16-bit world:
-quote-
The first x86 design
The 8086 project started in May 1976 and was originally intended as a temporary substitute for the ambitious and delayed iAPX 432 project. ... Both the architecture and the physical chip were therefore developed rather quickly by a small group of people, and using the same basic microarchitecture elements and physical implementation techniques as employed for the slightly older 8085 (and for which the 8086 also would function as a continuation).
Marketed as source compatible, the 8086 was designed to allow assembly language for the 8008, 8080, or 8085 to be automatically converted into equivalent (suboptimal) 8086 source code, with little or no hand-editing. The programming model and instruction set is (loosely) based on the 8080 in order to make this possible. However, the 8086 design was expanded to support full 16-bit processing, instead of the fairly limited 16-bit capabilities of the 8080 and 8085.
-end quote-
It seems technologically possible, as a program could always assume memory above its own segment (up to A000 of course) was free.
Can anyone conform or deny?
https://raw.githubusercontent.com/jart/cosmopolitan/master/a...
And given the cost of memory and CPU packaging pins, 20-bite probably didn't seem like too much of a loss compared to 24-bit addressing (or Motorola's internal 32-bit).
I remember back in my early CS courses where the teacher explained "microcode is this or that" and it sounded so dry. He could have explained microcode was magical goblins for all I cared. It didn't help that I knew nothing (and still don't) about circuitry.
But actually seeing registers and microcode there in the photo is amazing. All this stuff I was taught about actually has a physical form that can be seen!
The lowly 8086 really went a long way from its humble origins.
Hmm, the top part of the die shot looks like microcode to me:
http://visual6502.org/images/6502/6502_top_op10x_BF_4677.png
Disclaimer: just a software engineer, I've only ever heard of microcode, never seen it or written it.
[1] http://static.righto.com/images/z80/z80_labeled_bus_addr.png
There are two ways this is different from microcode. First, one instruction can trigger multiple "categories". Second, time is not an input here, so there is no stepping through operations.
The next part of the Z-80 instruction decoding is a big pile of AND-OR gates that generate the control signals based on the PLA outputs and the timing signals. For example, a gate might trigger the read-from-A-register signal for PLA-output-1 and time-1 or PLA-output-3 and time-1 or PLA output-1 and time-4. (These gates are all complex and were hand-drawn.)
The point of this is that both microcode and discrete logic generate particular control signals based on the instruction and time step, but they use very different ways to do this. With microcode, you can point to each micro-instruction as it executed, but in the Z-80, things are happening all over the place seemingly randomly.
No, a PLA [1] and a microcode ROM are two very different animals.
A PLA is a way of compactly specifying combinatorial logic circuits (arrangements of and/or/etc. gates) and in the form that gave it the name, it is end user programmable (the P stands for Programmable). But at its heart, a PLA is just a big arrangement of logic gates. A signal goes in, and after the necessary gate delays settle, the result signal comes out.
Microcode is literally a "program" and is 'executed' in the same way that all other programs are executed, one instruction at a time, addressed by a program counter. There are also often branching instructions that generate new program counter values to use to sequence through the various steps. None of which exists in a PLA.
The appearance of similarity arises because both look similar in a silicon die photo (rows and columns of transistors), but they are very different and perform quite different functions on the chip.
Talking about the PLAs in these processors versus ucode ROM, the big difference is that in a PLA, typically several lines are enabled at a time. In contrast a ROM will only have one line active at a time with an address decoder sitting in front of it.
You absolutely could use a microcode ROM in the place of how these chips use their PLAs, it'd just take more die area.
You can see this logic/data equivalence in other places of hardware design too. For instance how FPGAs are a sea of SRAM, but are equivalent to standard cell chips. FPGAs are just slower, larger, and easier to modify.
I never said they were.
I said: "and in the form that gave it the name, it is end user programmable (the P stands for Programmable)" which is in the context of generic PLA's, not the specific PLA in a Z80 or 6502.
I can imagine that some CPU designers from a particular world view (especially in the 70s) might only design in terms of microcode - but also design tools were pretty minimal, I can imagine that it might have been far easier to design things in terms of microcode rather than as PLAs - what you might be seeing here is the differences between different teams' in house custom tooling
However to be useful you need to know what each of those 21-bits is connected to, some will essentially be risc-like uCode instructions, the others will be tied to particular functions in the CPU or memory interface
Meanwhile the US4449184 patent [1] referenced in the post's footnotes has a lot of information about how the microcode works (and the meaning of the 21 instruction bits) and, in Tables 7-12, shows the microcode listings for some of the microcoded 8086 instructions.
Technically a microcode ROM (or any ROM, really) is a (degenerate case of a) PLA. Hence the visual similarities, since that type of grid pattern will be observed with any PLA, whether ROM or general-logic.
I had a question about the following passage:
>"The photo above shows part of the microcode ROM. Under a microscope, the contents of the microcode ROM are visible, and the bits can be read out, based on the presence or absence of transistors in each position. The ROM consists of 512 micro-instructions, each 21 bits wide."
I was curious why 21 bits? I would have expected this would have been a multiple or instruction size or perhaps also 16 bits. Or is there really no correlation between size of an instruction and it's underlying micro-ops?
One other question I had was in regards to the "Closeup of some transistors in the 8086" photo where the author states:
>"The circles are connections (called vias) between the silicon layer and the metal wiring, while the small squares are connections between the silicon layer and the polysilicon."
Vias are alway vertical correct? So are we looking at the chip from the top looking downward then? Why don't we see the metal layers then? Or do the metal wires themselves constitute the metal layer?
The entire exponential addressing space is not used, since there is an overall structure to both instruction sets.
The data path has a bunch of registers, things like an ALU, busses and multiplexers. You need a "write enable" wire for each register (or a single enable plus a small number of address bits), select signals for the multiplexers and some control bits for the ALU. 21 bits is as reasonable a number as any other. A slightly different data path might require fewer or more control signals even when used to execute the exact same instructions.
The metal layer is deposited on the whole wafer, but then everything is etched away except where you want wires. So the "wires" and the "metal layer" are indeed the same thing. The vias are just little wells in the oxide beneath the metal layer. So when you deposited metal on the whole wafer some of that filled in the little well making a vertical connection between the wire and what was under the oxide.
That's a great visual. I would love to find the original text if you or anyone else remember's the title.
https://www.amazon.com/exec/obidos/ASIN/0960786406/acmorg-20
"Computer Design" by Glen. G. Langdon
The second factor is that (as you suspect) there isn't any connection between the size of the machine instructions and the size of the micro-instructions.
Finally, the width of a micro-instruction depends on how much you want to control at once. You can have a micro-instruction that is 100 bits wide, letting the processor do different things in parallel (e.g. IBM 360 mainframe), or a very short micro-instruction that doesn't do very much. The choice of 21 bits is enough for each micro-instruction to do two things (a data transfer and an operation). Having a 100-bit wide micro-instruction would improve performance but make the ROM too large, so it is a tradeoff. (Lookup vertical and horizontal microcode for more information.)
For your second question, the photos are all looking downward onto the chip through a microscope. In the first die photo, you're looking at the metal layer. But in the closeup photo, I've removed the metal and polysilicon layers with acid, so you see the silicon layer. It's tricky to show how all the overlapping layers are connected, so I didn't do that in this post. But I have another post that shows how the layers work together in the 6502: http://www.righto.com/2013/01/a-small-part-of-6502-chip-expl...
Indeed. I guess it's easy to forget that processor in the 1950s up until 1970's or really before the microprocessor era were all over the map with word sizes.
Thanks for the clarification of the die photo. That makes sense.
By the way I really enjoy these posts and the discussions. Keep up the great work. Cheers.
There is no direct correlation between the external instruction size and the internal microcode width. The microcode ROM only needs enough bit width to generate all the control signals necessary to drive the hardware. And when laying out a mask ROM on an IC, the designer can make the ROM any bit-unit width they need for the task at hand.
In this case, the 8086 only needed 21 bits to drive the hardware and so the layout was a 21 bit wide ROM.
From the US4449184 patent [1], the microcode format was:
5 bits - S (data source)
5 bits - D (data destination)
2 bits - TYP (microinstruction type, e.g. 1 for an ALU op)
5 bits - A (opcode)
3 bits - B (varies by instruction type)
1 bits - F (whether to update the status flags)
So why 21 bits? That's exactly how many bits were needed to encode all of the various microinstruction fields, no more and no less. Since the ROM is internal to the CPU, there's no need to fit the instructions into an integral number of bytes.
Also, kiwidrew, if you're examining this closely, the 2 bits go from CR INC to the MUX, not to CR INC. What they are doing is generating a microcode start address from the instruction, and assigning 16 micro-instructions to that instruction by default. CR INC is a counter that steps through these micro-instructions. The idea is that most instruction (< 16 micro-instructions) won't need to do any jumps. A tricky part is that 2 bits of CR INC are part of the microcode row address, while the other 2 bits select 1/4 of the row. In other words, there are four 21-bit micro-instructions in each physical 84-bit row, so the ROM array isn't excessively tall and skinny.
The patent does enumerate (col 25 line 15) the TYP values: 0, 1, 4, 5, and 6. (The microcode listings also sometimes use a value of 7 for TYP.) So this would suggest that types 0 [conditional jump] and 1 [ALU operation] use a full 5-bit A field (to set the ALU opcode) while types 4-7 use a different format for the A and B fields. The MSB of TYP would select between the two formats, and this would explain the absence of a type 2 or type 3 instruction.
We had hige prints of the designs of many chips on the wall in our lab.
They were super cool looking.
I always regretted not taking some home.
Before multi-cores existed, i recall asking some colleagues there, “why cant we just stack multiple cpus on top of eachother?”
I guess you know this already, but the answer is you were right. You can, but heat dissipation is a real problem. The technique is called 3D ICs. https://semiengineering.com/stacked-die-changes/ https://en.wikipedia.org/wiki/Three-dimensional_integrated_c...
This was in ~2002 or so? I cant recall.
But the compute power was low - it was more about the interconnects, IIRC?
Anyway -- I ran the gaming lab and was responsible for testing games with SIMD instruction optimizations against games on the first celeron and pentium based CPUS to determine if they passed a subjective muster, as intel would give a company $1MM in marketing funding if they advertised their games as being opt for intel procs...
My greatest claims from intel was:
I never once sat in my cube.
I had the same pee schedule as Andy Grove and for some reason, like every single time I went pee... he was there also and we peed "together"
The most I ever said to the Titan was "Hi How Are You" GOTO 10 "Oh Shit, He Is Here Again"
Will wait for this article!
My guess is that the prefetch buffer is always 6 bytes but the 8088 fetches instructions more slowly and never fills it past 4 instructions
I think they're probably the same die, the thing to look for is whether there's a bonding difference
Very unlikely. The 8088 was developed after the 8086, and there are more pin differences including m/io inverting to io/m.
I’ve only done it with the 6502 and Z80, but the 8086 shouldn’t be too much harder. There are plenty of resources available online for those two chips that you could adapt!
http://tech.mattmillman.com/projects/8od/
http://www.s100computers.com/My System Pages/8086 Board/8086 CPU Board.htm
I've always wanted a "visual 6502" style emulation of the original IBM PC, and a high-resolution die photo is the first step. Cycle-accurate emulation of the 8088 is fiendishly difficult thanks to the complex interactions between the EU and BIU.
